Sod Transplanting Machine
HomeServices ProvidedProject PortfolioPublished ProjectsPast Clients with LinksTestimonialsResume for Ed SchultheisDegrees & CertificatesU.S. PatentsRefer a FriendContact Us

This web site does not contain or reveal any client proprietary information.

.
.
3-Row Bluegrass Transplanting
Machine Prototype

CAD model of complete machine showing grass sod strip bulk feeder attached to front of machine frame

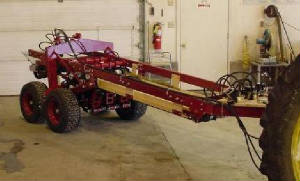

View from rear of rear-side of machine

View from front-side of machine

View of assembled 3-row transplanter mechanism

.
 .
Grass Sod
Transplanting Module

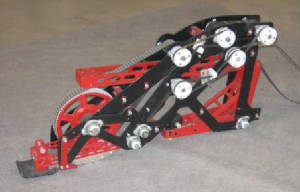

Grass sod transplanter module assembly

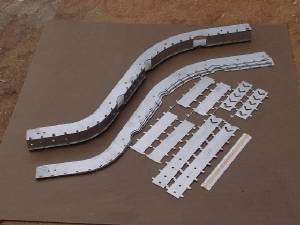

Sheet metal grass sod chute (components & assembly) laser-cut from galvanized steel sheet

.
.
Hi-Torque Crank-Shaft &
Jack-Shaft Design
Assembled crank-shaft and jack-shaft
Unassembled Crank-Shaft Components
